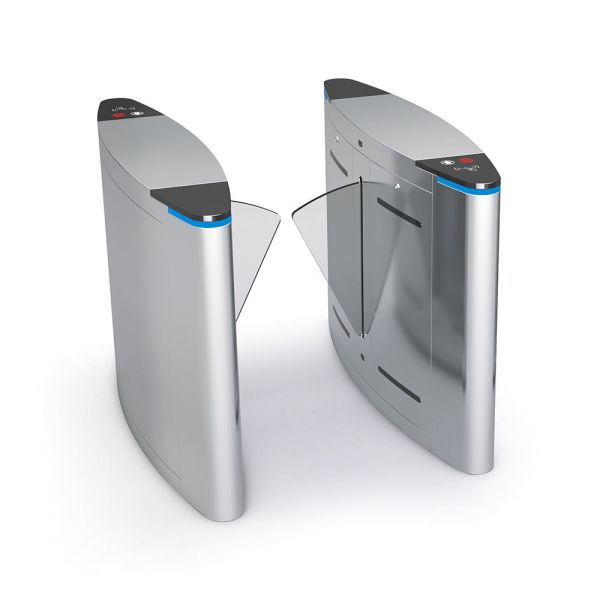

304 Stainless Steel Face Recognition Flap Barrier Gate with 30~40 Persons/Min Access Control Turnstile

  • 1
  • 2

Brand Name : SINOMATIC

Model Number : SN-FB

Certification : CE/ ISO

Place of Origin : Shenzhen China

MOQ : Sample order accepted

Price : negotiable

Payment Terms : T/T or western Union,L/C,D/A,D/P,T/T,Western Union

Supply Ability : 1,000 pcs per month

Delivery Time : 5-10 working days after payment received

Packaging Details : Carton/Plywood box/Pallet

Material : 304 Stainless Steel

Power supply : AC220V/110V; DC24V

Type : single core & double core

Passage width : 600mm One passage

Working environment : Indoor / Outdoor ( Shelter)

Communication interface : Relay Signal,RS485/IP/TCP,TCP/IP

Direction : one-way,bi-direction adjustable

Transit speed : 30~40 persons / min

Contact Now

High-Speed Flap Barrier Gate Access Control System
The pedestrian fast and safe access control system is designed for efficient people flow management in high-traffic environments. This high-speed flap barrier gate provides secure, rapid access control for metro stations, stadiums, hospitals, factories, and other facilities requiring controlled pedestrian movement.
Product Overview
Sinomatic flap barriers turnstile has excellent performance and sleek structure, helping you control order in many places. It can easily manage people in and out, and is ideal for indoor or outdoor access control.
Key Features & Functions
  • Compatible with smart card readers and access controllers for comprehensive access control
  • Expandable to automatic identification systems for access control, pedestrian flow management, attendance tracking, and fare collection
  • Standard electrical interfaces for easy integration with other read/write devices and remote computer management
  • Dual infrared photocells for unauthorized entry detection, tailgating prevention, and anti-strike protection
  • LED gate direction indicators showing operational status (green arrow for entry, red cross for locked)
  • Multiple input signal options from access controllers, buttons, or other equipment
  • Audible sound prompts and information display functionality
  • Automatic flap opening during power interruption with normal close mode restoration after power recovery
  • Continuous passage counting for up to 16 pedestrians with corresponding card reads
  • Reverse passing alarm for unauthorized direction entry attempts
  • Advanced face recognition terminal with 200W pixel camera for face detection, tracking, and recognition
Technical Specifications
Product Name Flap Barrier Gate
Model SN-FB
Material Stainless Steel 304 (Cover: 1.5mm, Cabinet: 1.2mm)
Size 1200 * 300 * 980mm
Passage Width 600mm
Passage Direction Single or double (can be set)
Pass Rate 30~40 persons/minute
Infrared Sensor 4 pairs
Power Input AC100-240V, 50/60Hz; DC24V
Working Voltage 24V
Working Humidity ≤95%
Working Temperature -30℃ to +70℃
Working Environment Indoor/Outdoor
Communication Interface RS232, RS485, TCP/IP
Access Control Systems ID/IC card, fingerprint, face recognition, barcode/QR code, phone app, ESD system, visitor system
